ESP-Scope — Web Oscilloscope for ESP32

Features

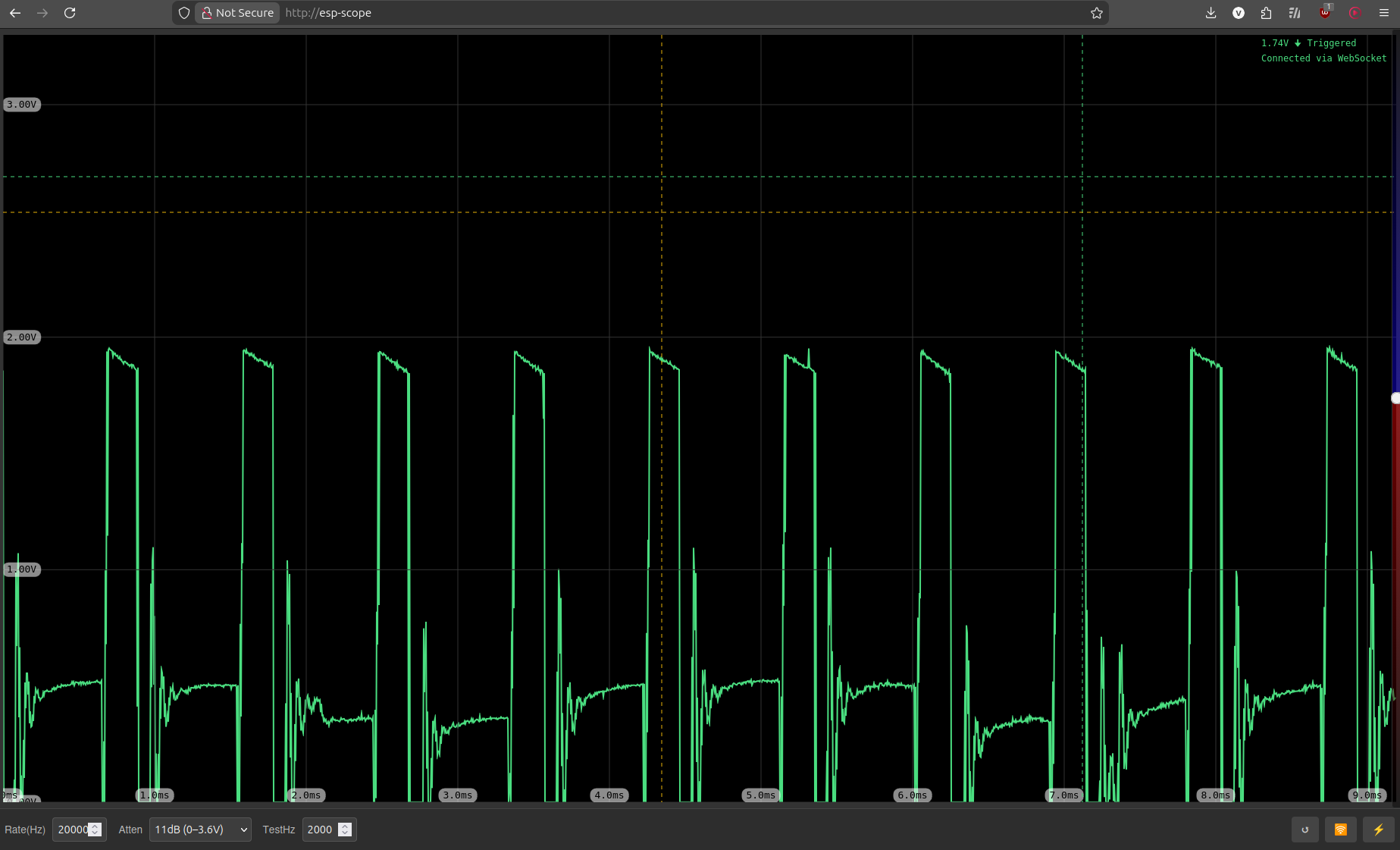

Real-time visualization

Signal waveforms rendered live in your browser over WiFi.

Adjustable sample rate

1 Hz to 83 333 Hz with configurable ADC attenuation.

Crosshair & trigger

Precise measurements with a crosshair cursor and adjustable trigger level.

Built-in test signal

PWM output on D1 at a configurable frequency — no external source needed to get started.

WiFi setup from browser

Starts as a WiFi access point. Join your home network via the web UI — no serial console required.

Browser controls

Reset settings, reconfigure WiFi, or power off the device — all from the interface.

Connect your ESP32 via USB and install directly — no drivers or toolchain needed.
Requires Chrome, Edge, or Opera on desktop.

Select firmware version

Loading releases…

Supported boards in this release

Your board not listed? Open an issue

Your browser does not support WebSerial. Please use Chrome, Edge, or Opera on desktop.

The correct binary is picked automatically for your chip.

Connect to the AP

ESP-Scope starts as a WiFi access point. Connect your device to the ESP-Scope network.

Open the interface

Navigate to http://esp-scope in your browser. You may need a .local suffix depending on your OS.

Optionally join your WiFi

Tap WiFi in the UI to enter your SSID and password. The device reboots and joins your network.

Connect a signal

Probe from ADC0. Use the built-in test signal on D1 to verify the setup first.

LED behaviour	State
Continuously lit	Connecting to WiFi / starting wireless AP
1 s equal flash	AP mode — connect to the "ESP-Scope" network
Slow, brief flashes	Connected to the WiFi SSID set in the UI
Rapid, brief flashes	Sending data to an active client
